Corona SEIR Workbench (english)

The SARS-COV-2 pandemic has been affecting our lives for months. The effectiveness of measures against the pandemic can be tested and predicted by using epidemiological models. The Corona SEIR Workbench uses a SEIR model and combines a graphical output of the results with a simple parameter input for the model. Modelled data can be compared country by country with the SARS-COV-2 infection data of the Johns Hopkins University. Additionally, the R₀ values of the Robert Koch Institute can be displayed for Germany.

Current status of the COVID-19 pandemic

Since December 2019, the corona virus SARS-COV-2 and its COVID-19 disease has been keeping the world in suspense with a pandemic. Although, the occurrence of a comparable pandemic was only a matter of time. It is estimated that similar pandemics occur every 20-30 years1.

Yet today no vaccine against SARS-COV-2 is available comprehensively, many different non-medical measures are being used to defeat the pandemic. These range from everyday masks, distancing of people, closure of public institutions, sports facilities, bars and restaurants, up to contact restrictions, all with the aim of reducing the spread of virus particles. Test strategies and contact tracing should detect infected persons as soon as possible and then isolate them in a quarantine. All these measures are designed to control the occurrence of infection and yet have as few restrictions as possible for the population and as few as possible negative economic impacts.

Prerequisite for controlling the pandemic is a data base as good as possible. In Germany, this is generated by the Robert Koch-Institut via the local health authorities. Internationally, the Center for Systems Science and Engineering (CSSE) at Johns-Hopkins-University collects and publishes SARS-COV-2 infection data.

The central goal of pandemic control is to avoid overburdening the health care system so that all those suffering from COVID 19 receive the best possible medical care. Moreover, the lowest possible infection rate is desirable to minimize the health consequences for the population.

On the basis of the data obtained, epidemic models can make predictions about the infection process in the future. The number of infections grows exponentially. As a result, the rise in the number of patients can get out of hand quickly and overburden the healthcare system. Because of this, early intervention and a review of the measures taken are essential to control the pandemic.

The SEIR Model

The SEIR model belongs to the class of compartment models that sort people into different compartments. The SEIR model divides the population into four compartments: “Susceptible” (people who are susceptible to an infection), “Exposed” (infected people during the incubation period), “Infectious” (infectious people) and “Recovered” (people who recovered from the disease or died):

Compartments of the SEIR model
Compartments of the SEIR model

During modeling, people move from one compartment to the next. The calculation takes place per time unit. Usually a single day is used as time unit.

At the beginning of the epidemic almost all persons are healthy and in the “Susceptible” compartment. All persons in this compartment can be infected with the corona virus. After an infection, a person moves to the “Exposed” compartment and remains there for the medium incubation period of the disease. At this time the person is not yet contagious to other people. A study2 in January stated the mean incubation time as 5.2 days. A detailed discussion can be found in Byrne et al.3.

As soon as the ill person distributes virus particles and can infect other people, he or she moves from the “Exposed” compartment to the “Infectious” compartment. This “bucket” contains the people who are driving the pandemic. The infectious person remains in this compartment for the average infection time of 2.9 days4.

The average infection time should not be confused with the maximum infection time, which plays a role in quarantining a sick person and can be up to 14 days. The mean duration of infection is also influenced by the diagnosis, as a symptomatic person is tested often at the onset of symptoms and then isolated.

After a person has survived the disease and is no longer infectious, the person moves from the “Infectious” to the “Recovered” compartment.  At this time, the person is immune to re-infection with SARS-COV-2. Another possible outcome is that the person might have died from COVID 19 disease. The SEIR model makes no distinction here and puts the person in both cases into the “Recovered” compartment.

Maths of the SEIR model

In the SEIR model, the change of all four compartments per time unit is calculated. In the first step, ΔS susceptible persons in compartment S are infected by infectious persons in compartment I. Determining factors are the number of infectious persons and the basic reproduction number R0:

SEIR ΔSusceptible

For SARS-COV-2, an R0 value of 3.45 was determined for an unrestricted virus spreading. This means that on average, one infected person infects 3.4 other susceptible persons. R0 values greater than 1 result in an exponential growth of new infections, while an R0 value less than 1 leads to a decreasing number of newly infected persons.

The change of infectious persons ΔE depends on the incubation period:

SEIR ΔExposed

Therefore, the number of infectious persons increases with a certain time delay after they got infected.

After the disease has been overcome or the infectious person has been isolated, he or she moves to compartment R. The number ΔI depends on the average duration of infectiousness:

SEIR ΔInfectious

The symbols used in the equations represent the following values:

SEIR legend

The new numbers of persons S‘, E‘, I‘ and R‘ in the compartments S, E, I and R after a time unit can be calculated with the following formulas:

SEIR next Susceptible
SEIR next Exposed
SEIR next Infectious
SEIR next Recovered

The Workbench

The goal of the Corona Workbench was to create an infrastructure for modelling an epidemic. In addition to the modelling, this includes the graphical output of results per time unit and an easy modification of modelling parameters. To compare the modelling with historical data, it should be possible to display population sizes, infection data and R0 values in the same chart. In addition, the software should be easily extendable so that other models can be implemented without much effort.

Architecture of the Workbench

We used a class-based approach with C# for the Corona SEIR Workbench, because individual components can be isolated easily and maintained much better this way. Furthermore, .Net offers a very good performance and C# has all the features of a high-level language with object-oriented and functional language elements. Using Linq, operations on sets of data can be programmed very easily.

For a graphical data output, we use the Microsoft Windows Forms Charting6 Library, which comes with Visual Studio. The user interface was programmed in XAML with the Windows Presentation Foundation. Both were combined in a .Net Core 3.1 project.

In order to present data from as many countries as possible, we use the infection data from the CSSE of the Johns-Hopkins-University. This data is aggregated by Datopian on a daily basis by country. For historical R0 values of Germany we use the daily nowcasting values published by the Robert Koch-Institute. We determine population data from the web API of the World Bank. Data is downloaded from the web only once a day and then temporarily stored for further processing.

A Python-based approach to SEIR modelling for SARS-COV-2 has been published by Pina Merkert7 in the Heise c’t magazine. The Python code can be found on Github.

Using the Workbench

The user interface should be as simple as possible and can be easily extended by C# programmers using Visual Studio. The main window is divided into three blocks:

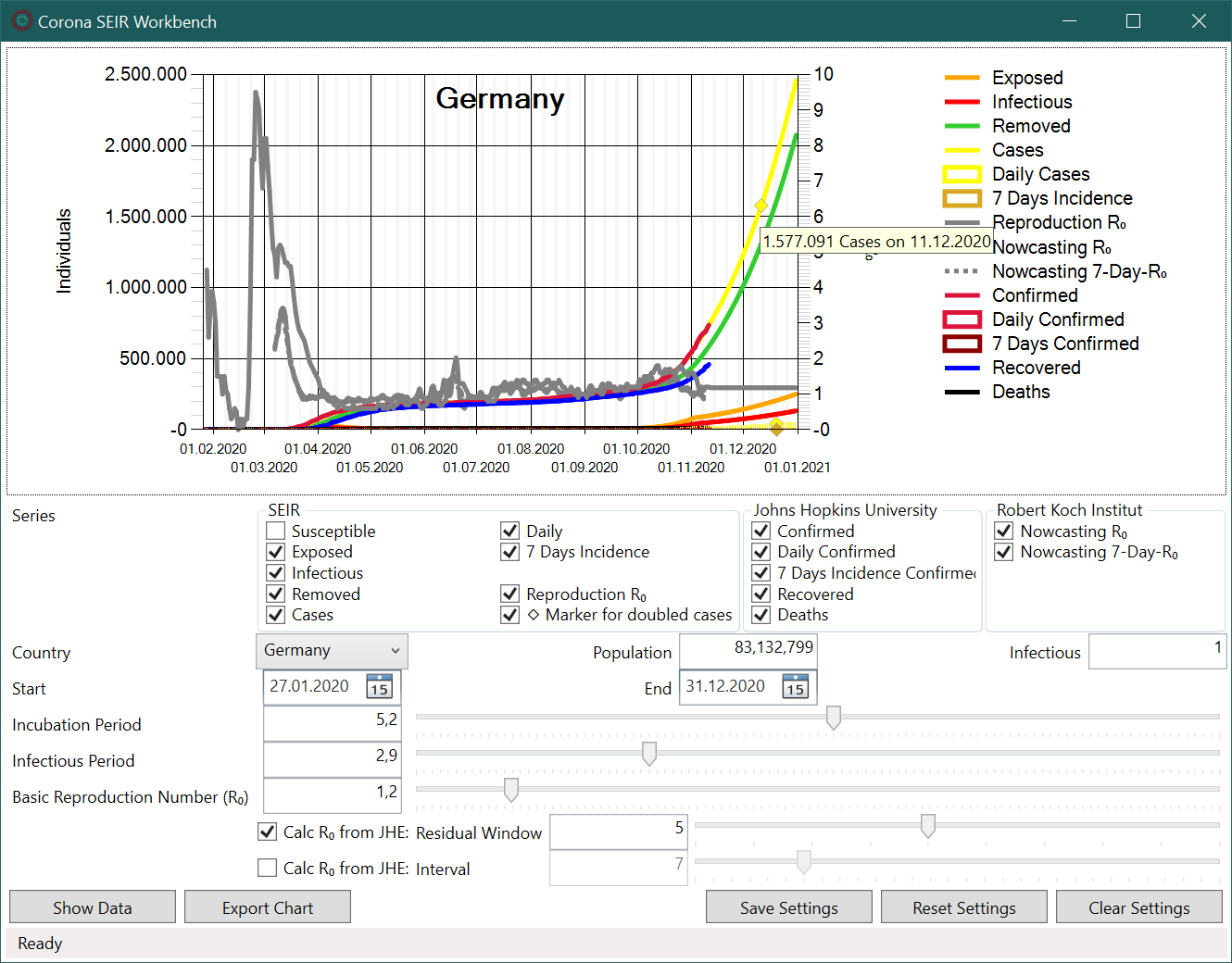

User Interface of the Corona SEIR Workbench
User Interface of the Corona SEIR Workbench

In the upper area a diagram is shown. Data points are displayed per date on the horizontal axis. The left axis refers to case numbers while the right axis shows R0 values. Data points for daily incidence are drawn as bars in the graph and boxes in the legend. Additionally, for modelled values of total cases, daily cases and mean 7-day case numbers, a rhombus is displayed when the values have doubled compared to the value of the current date. In the tooltip the data value and date are shown for the data point under the mouse pointer.

Below the diagram, individual curves can be hidden or shown in the “Series” area. The scaling of the axes is automatic, so that it usually makes sense to hide the SEIR curve of susceptible persons (“Susceptible”) because of its large values.

The next parameters determine the country and the modelling period. Moreover, SEIR parameters can be set for the average incubation period, the mean infection period and the base reproduction number R0. Changes of the parameters are applied immediately, the model is recalculated and results are displayed in the diagram.

Beside a constant R0 value, the base reproduction number can be calculated from historical data. The calculation of the R0 value is done by a “solver” component, which solves the SEIR model with a Levenberg-Marquardt approach. The first “solver” calculates the R0 value for each day considering a window of n days in the future. The larger this window gets the smoother the R0 curve gets. In the second method, the R0 value with the smallest deviation in the case numbers is calculated for a given interval of days. Both “solver” components use the largest R0 value, which gives the smallest error if the errors of multiple R0 values are identical.

Finally, from the last 5 days with historical data the average of the R0 value is calculated and used for future calculations in the SEIR model. You can adjust this mean R0 value manually to allow for infection control measures in the model.

In the lower part of the main window functions can be executed by buttons. “Show Data” displays a table with all data points from the chart. You can transfer them from the table to other applications like Microsoft Excel via the clipboard. With “Export Chart” you can export the chart in various formats or as a CSV file.

Your chart settings and SEIR model parameters can be saved with the “Save Settings” button. Saved settings are applied automatically during application start. The button “Reset Settings” resets all settings to their default values. Like the “Reset Settings”, the “Clear Settings” button resets all settings, but hides all curves in the chart additionally. This function is convenient for creating your own charts because you don’t have to hide series first.

Results of the Workbench

The simplest SEIR model with an unrestricted virus spread uses a constant base reproduction number of 3.4 for Germany.

SEIR model for Germany
SEIR model for Germany

IIn this case, almost the entire population would have been infected in April and May this year. However, the actual case numbers of the Johns-Hopkins-University for Germany show a different run of the curve:

Covid-19 cases of the Johns-Hopkins-Universität from 13th November 2020
Covid-19 cases of the Johns-Hopkins-Universität from 13th November 2020

The reason for the different trend can be explained by the R0 values of the Robert Koch-Institute, which decreased from 3.4 to below 1.0 in April:

Covid-19 cases of the Johns-Hopkins-Universität from 13th November 2020 with R0 values of the Robert Koch-Institute
Covid-19 cases of the Johns-Hopkins-Universität from 13th November 2020 with 0 values of the Robert Koch-Institute

The basic reproduction number has been significantly reduced by the nation-wide lockdown and contact bans in Germany. The peek in mid-June was probably caused by the high number of SARS-COV-2 infected people in the Gütersloh district caused by butchers‘ companies. This was a local outbreak and was contained quite quickly.

If R0 values are calculated from historical data using the Levenberg-Marquardt8 method, the SEIR model shows the same trend. The case numbers (yellow line) correspond to the historical infection series (red line) up to 13th November 2020, which is the current date. If the current R0 value of 1.2 is assumed for the future, however, a further sharp increase is likely and a doubling of case numbers will occur in less than a month (yellow rhombus).

SEIR prediction with calculated R0 base reproduction number
SEIR prediction with calculated R0 base reproduction number

The calculated R0 value in March is significantly higher than the value determined by the RKI. This is due to the low number of cases in February and early March. It is a fundamental weakness of the R0 that the value shows high fluctuations when case numbers are very low. Thus, the average 7-day incidence number per 100,000 people was used as an assessment criterion during the summer.

SEIR prediction of 7 days incidence with calculated R0 base reproduction number
SEIR prediction of 7 days incidence with calculated R0 base reproduction number

Again, the series of the Johns-Hopkins data correspond to the SEIR model. However, in this simulation a R0 value of 0.9 was used for future values. This R0 value is close to the 7-day R0 value of November, the 8th of 2020 from the RKI nowcasting table. In this situation, the 7-day incidence value of 100.000 individuals would decrease below 100 cases per day at the beginning of December.

The different simulations show how critical the basic reproduction number is for the further development of the pandemic. A R0 value above 1 is the driver of the epidemic.

Class model of the Workbench

The Corona Workbench implements an interface-based class model for the SEIR models. Each SEIR model has an ISEIR interface which provides SEIR parameters and the number of people for the S, E, I and R compartments. The interface defines a Calc method which calculates model values for a certain number of days. The calculation of the compartments S‘, E‘, I‘ and R‘ is done by using static functions and can be easily changed with these functions. The setup of the ISEIR model takes place in the constructor.

SEIR class model
SEIR class model

A view takes care of the display of ISEIR data. The view can be either implememnt an ISeriesView interface for discrete time intervals or use an IDateSeriesView interface for a time range with start and end date. The CalcAsync method of the view calculates the model and stores individual data points in a chart data series. The SEIRR0DateSeriesView view allows the SEIR calculation with varying R0 values for different dates.

Historical R0 values are calculated by solver objects with an IR0Solver interface. The interface defines a Solve method, which returns a sequence of R0 values. The IR0Solver interface is implemented by a SEIRR0Solver class, which compares for each day the calculated case numbers of the SEIR model with the actual case numbers and returns the optimal R0 value for the day by using the Levenberg-Marquardt8 method. As a simple approach, all R0 values between 0 and 10 are calculated in steps of 0.1 and the largest R0 value with the smallest deviation from the actual case numbers is returned.

Class model of the R0 solver
Class model of the R0 solver

Historical infection data from the Johns-Hopkins Center for Systems Science and Engineering is retrieved by a JHU object and returned as data series via the JHUDateSeiriesView view. Since the data of the Johns-Hopkins-University is a unique algorithm, no interface was defined for the JHU class:

Classes for the loading of Johns-Hopkins CSSE data
Classes for the loading of Johns-Hopkins CSSE data

The JHU object caches the retrieved data in a temporary CSV file and parses it as fast as possible.

The same approach is used by the RKINowcasting class, which downloads the Nowcasting Excel file of the Robert Koch-Institute once a day and returns the columns “Point estimator of the reproduction number R”, as well as “Point estimator of the 7-day R value” for dates.

Classes for the loading of Robert Koch-Institute Nowcasting data
Classes for the loading of Robert Koch-Institute Nowcasting data

The current population of a country is determined with the WPPopulation class via the World-Bank API.


The Corona SEIR Workbench provides a simple infrastructure for modelling epidemics. It uses standard components such as Windows Forms Charting for displaying charts and the Windows Presentation Foundation for the user interface. Current epidemiological data for COVID-19 can be downloaded from the web and compared with calculated model values.

This allows the application to be extended with little effort. For example, regional infection data from the RKI would show a higher spatial resolution for Germany. Furthermore, future R0 values could be specified as a function or with multiple value in a table.

The calculation of R0 values depends on the Corona test strategy. E.g, a high number of unreported cases lead to wrong R0 values for historical infection data. Since particularly young infected persons can be asymptomatic, the age distribution of infected persons is important for the estimation of unreported cases. Moreover, there are feedback loops with epidemic measures, such as the quarantine of travel returnees from risk areas. A number of these people will never seek tests despite symptoms because they want to get around the quarantine time.

A further development of the SEIR model would be the calculation of superspreading events and percolation resulting from overdispersion of corona infections. A cluster diary could be used to track superspreading events.

In order to calculate the effort of medical care, it is necessary to divide the infected persons into mild cases and severe cases. However, for this calculation data on the age structure of the infected persons are necessary.

Much more advanced modelling would be, for example, Prof. Priesemann’s approaches to the infection fatality rate (IFR)

Much more advanced modelling would be, for example, Prof. Priesemann’s approaches to the infection fatality rate (IFR)9 or the effects of a testing, tracking and isolation strategy (TTI, Test-Trace-Isolates)10.

In the end, the Corona SEIR Workbench is just an infrastructure, waiting for the next adoption. We are curious to see what applications you will find.


Corona SEIR Workbench 1.0.12,98 MBCorona SEIR Workbench Version 1.0.1 Program, requires .NET Core 3.1 Runtime

Current version:

Corona SEIR Workbench 2.3.02 MBCorona SEIR Workbench Version 2.3.0 Programm, requires .NET Core 5.0 Runtime
Corona SEIR Workbench 2.3.0 Setup119 MBCorona SEIR Workbench Version 2.3.0 Setup with Runtime
